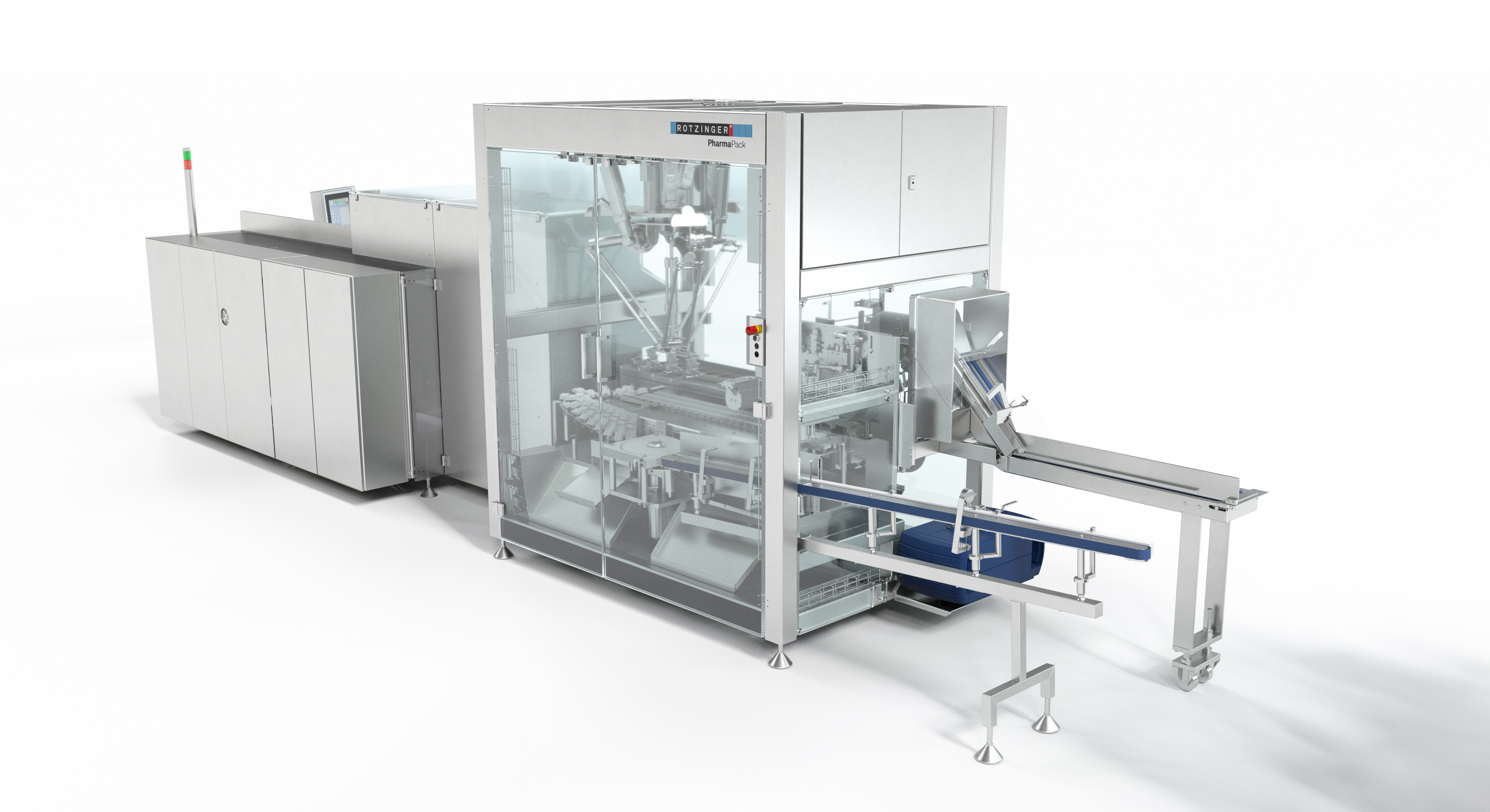

CUK Series

Continuous Horizontal Cartoning Machine

Quick facts

Continuous motion cartoner
Output rate up to 400/min
Excellent access to all components

The continuous driven cartoning machines series CUK are designed for applications with up to 400 cartons per minute. The machines are mechanically driven by the main shaft.

Whether in line with a blister or not carrying a tray for vials, bottles, ampoules and other pharmaceutical products, the CUK offers solid and reliable technology.

Besides the many advantages such as high flexibility, user friendliness and high reliability the CUK-series also stands out for its robust design and its low-wear operation. It guarantees secure product feed and safe feeding and rearing of folding cartons as well as quick and easy format change. The machines excel with their cGMP compliant basic machine structure in balcony design with the packaging section being strictly separated from the drive section.

Logo of Rotzinger PharmaPack.
Contact us
up to 400 cartons/min
Operating Mode:
Size range (A x B x H):
min. 34 (22) x 15 (12) x 75 (56) mm, max. 150 x 80 (95) x 260 mm
Power Consumption:
6 kW
Connection Value:
8 kVA
Compressed Air Requirement:
3 m³/h at 6 bar overpressure


  • High flexibility through modular mechanical equipment for the combination of feeding and closing variations
  • User friendly through ergonomic design and equipment
  • High reliability and availability for different carton qualities
  • cGMP compliant design
